Cantilever Sliding Gate 5' High Plus 1' Barbed Wire x 30' Wide Gate Opening (Commercial 2" x 9 Gauge Fabric)
Details

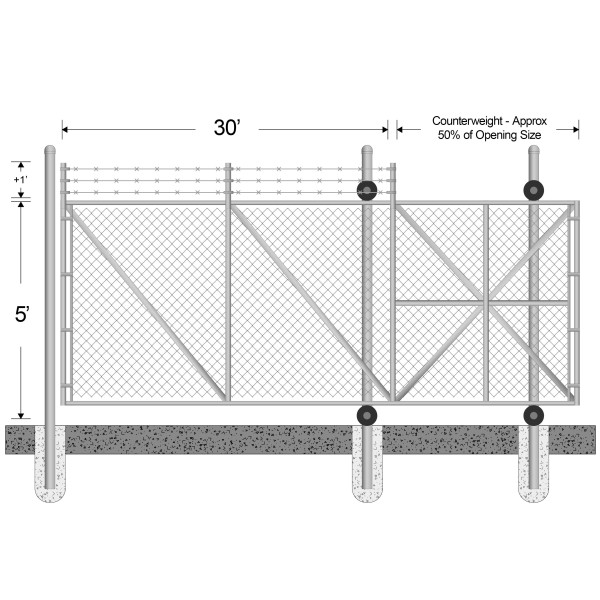

Cantilever Sliding Gate 5' High Plus 1' Barbed Wire x 30' Wide Gate Opening (Commercial 2" x 9 Gauge Fabric)
Created with a weight of 2,200 lbs and a 2 1/2" round commercial frame, the 5' High x 30' Wide Gate Opening is made for Cantilever slide gates. This gate opening is a perfect choice for any commercial location and offers 1' of 3-strand barbed wire.
Specifications:
- Dimensions: 5' x 30'
- Fabric: 2" x 9 Gauge
- Frame Grade: SS40
- Frame Rails: 2 1/2" (2 3/8")
- Frame: 2 1/2" Round Commercial
- Weight: 2,200 lbs.
- Barbed Wire: None
| SKU | CSG-5-30-29G-PLUS1 |
|---|---|
| Barbed Wire | Yes |
| Rail Size | 2 1/2" (2 3/8") |
| Frame Grade | SS40 |
| Mesh Size | 2" Square Mesh (9 Gauge) |
| Specification Sheet | Download PDF file |
| Width | 30' |
| Height | 5' (+1' Barbed Wire) |
| Installation | In-Ground |
