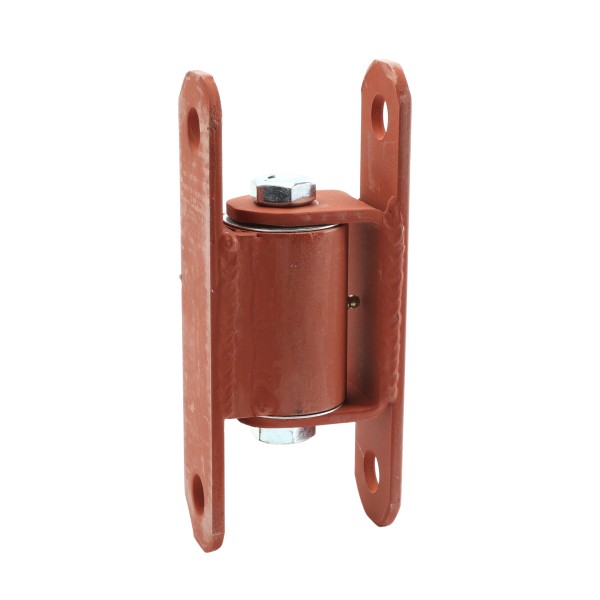

LiftMaster GUARDIAN Heavy Duty Bolt-On Mounted Roller Cage Bearing Gate Hinge (EA) Prime Coated - 2050P

If you’re looking for a heavy-duty hinge, this GUARDIAN 2050P hinge offers advanced features, such as a roller-bearing design capable of holding up to 3,000 pounds per pair. The hinge is bolted to the gate and post and created with carbon steel. It is prime coated for durable weather resistance. Comes with one hinge.
Part Number: 2050P

$100.79 each
OR


Details

LiftMaster GUARDIAN Heavy Duty Bolt-On Mounted Roller Cage Bearing Gate Hinge (EA) Prime Coated - 2050P

For improved long-lasting hinges, the 2050P GUARDIAN Heavy Duty Hinge is made of prime-coated carbon steel. A gate weight of up to 3,000 pounds per pair is supported. The GUARDIAN Heavy Duty 2050P Hinge has roller bearings for resilient strength and a robust outer core. A bolt-on gate and post design are also included for bolt-on installations that call for a non-weld-on hinge.

Key Features:

  • Sold Individually (1 Unit)
  • Heavy-Duty Construction
  • Can Hold A Gate Of Up To 3,000 Lbs.
  • Easy To Lubricate
  • Ideal Weight Bearing Surface
  • Made With Carbon Steel And Has A Prime Coated Finish
Click here for the drawing PDF
Name LiftMaster GUARDIAN Heavy Duty Bolt-On Mounted Roller Cage Bearing Gate Hinge (EA) Prime Coated - 2050P
SKU 2050P
Part Number 2050.100
Manufacturer GUARDIAN Gate Hardware
Material Carbon Steel
Finish Prime Coated
Hinge Model Heavy Duty
Gate Frame/Post Shape Square-To-Square
Max Gate Weight 3,000 lbs per pair
Unit Combination Single
Gate Mount Bolt-On
Post Mount Bolt-On
Yoke Material Steel
Price $100.79
