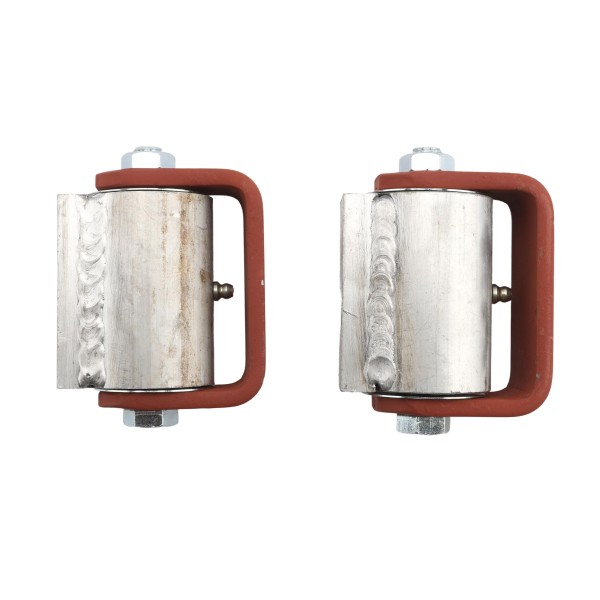

LiftMaster GUARDIAN Specialty Flat Mounted Roller Cage Bearing Gate Hinge (Pair) Aluminum/Steel - 2170AS

If you are searching for a specialized hinge with an aluminum body and steel yoke, this roller cage-bearing 2170AS hinge is a good fit. This hinge was designed to support gates weighing up to 600 pounds. This set has a flat-mounted design and is sold in pairs of two.
Part Number: 2170AS

$204.02 each
OR


Details

LiftMaster GUARDIAN Specialty Flat Mounted Roller Cage Bearing Gate Hinge (Pair) Aluminum/Steel - 2170AS

The 2170AS is a GUARDIAN roller cage hinge that offers a unique combination of aluminum and steel design to aid in the installation of a unique post or gate. It has a flat-mounted aluminum body and a steel yoke. Up to 600 pounds of gates can be supported by one hinge per pair. You'll get the greatest weld surface and most uniform weight distribution possible with these hinges.

Key Features:

  • Sold As A Pair (2 Units)
  • Constructed With An Aluminum Body And Steel Yoke
  • Has A Roller Cage Design
  • Can Hold A Gate Of Up To 600 Lbs. Per Pair
  • Easy To Lubricate
  • Heavy-Duty Construction For Durability

Click here for the drawing PDF

Name LiftMaster GUARDIAN Specialty Flat Mounted Roller Cage Bearing Gate Hinge (Pair) Aluminum/Steel - 2170AS
SKU 2170AS
Part Number 2170.100
Manufacturer GUARDIAN Gate Hardware
Material Aluminum
Finish Unfinished
Hinge Model Specialty Standard Duty
Gate Frame/Post Shape Square-To-Square
Max Gate Weight 600 lbs per pair
Unit Combination Pair
Gate Mount Flat
Post Mount Flat
Yoke Material Steel
Price $204.02
